Tri-band radio Baofeng UV-5RM 8W with USB-C

This product is available in our stores

You can buy this product without placing an online order at one of our stores in your area. Check where the product is in stock.

Check availability

Description

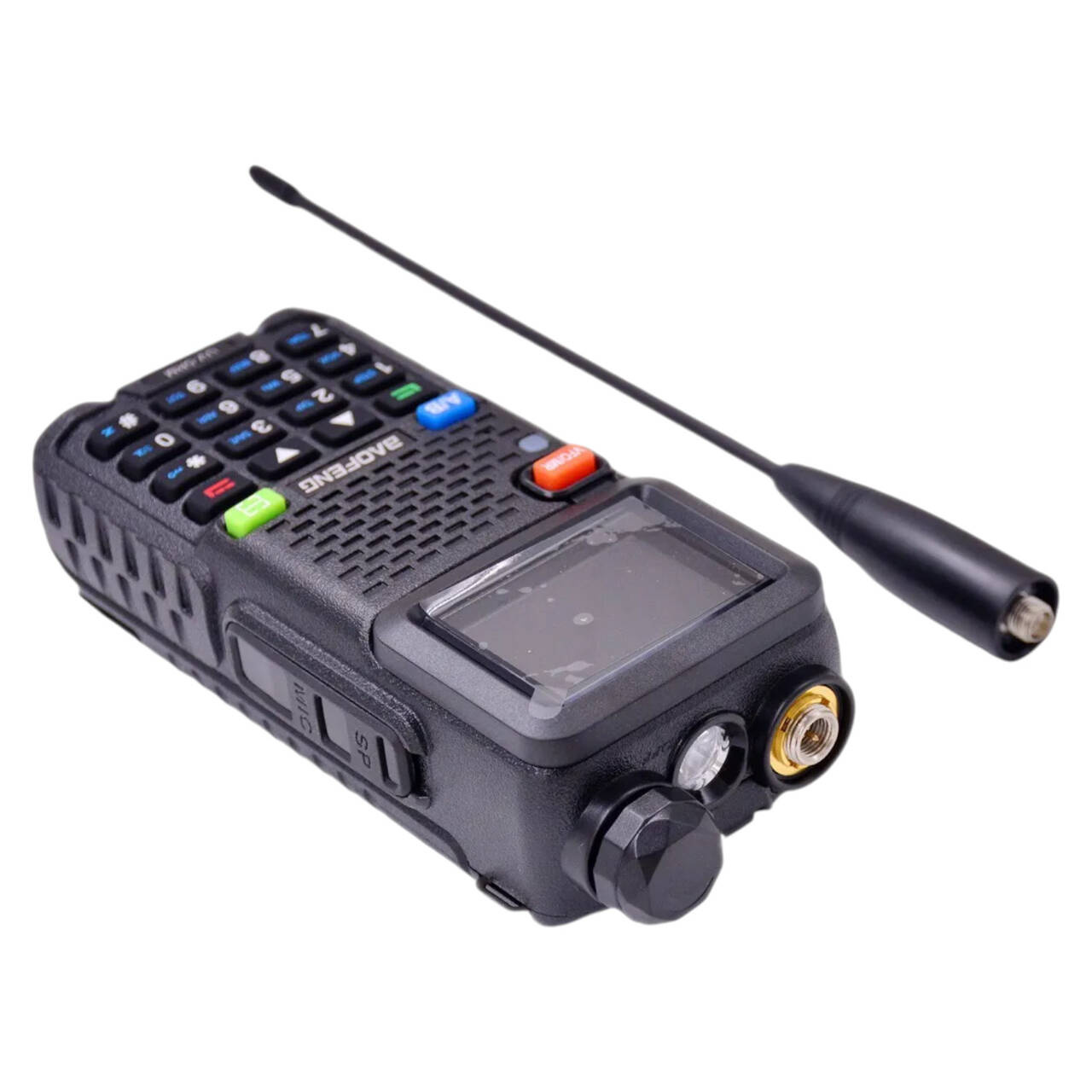

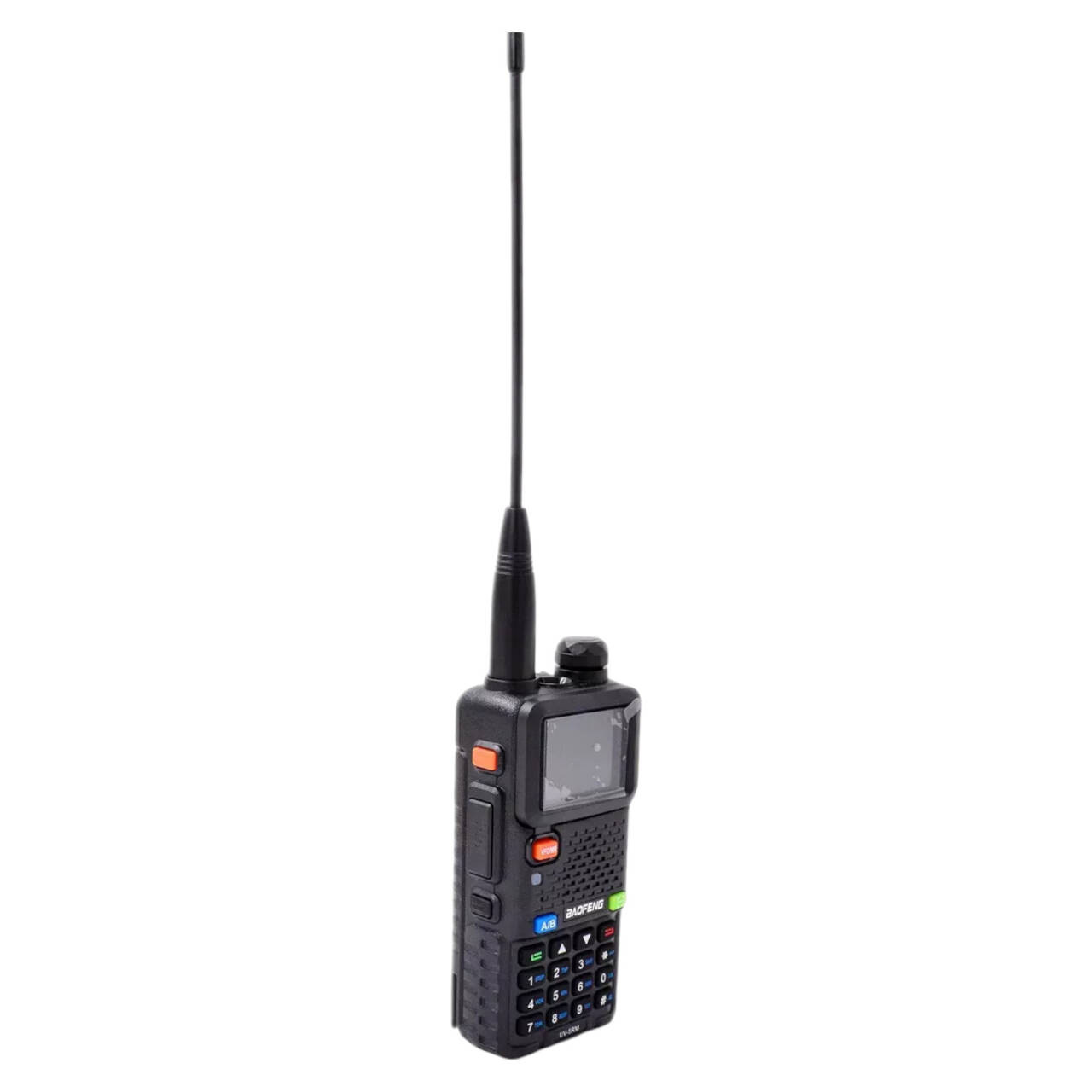

The Baofeng UV-5RM tri-band tri-band radio is an improved version of the very popular UV-5R. The UV-5RM offers 8W power, a 1.77" TFT color display, AIR reception, a more powerful 2500 mAh capacity battery, and the option to set a password on power on and charging via the USB-C connector.

It can easily tune in shared frequencies on both VHF and UHF bands, AIR/marine frequencies, transponders, etc.

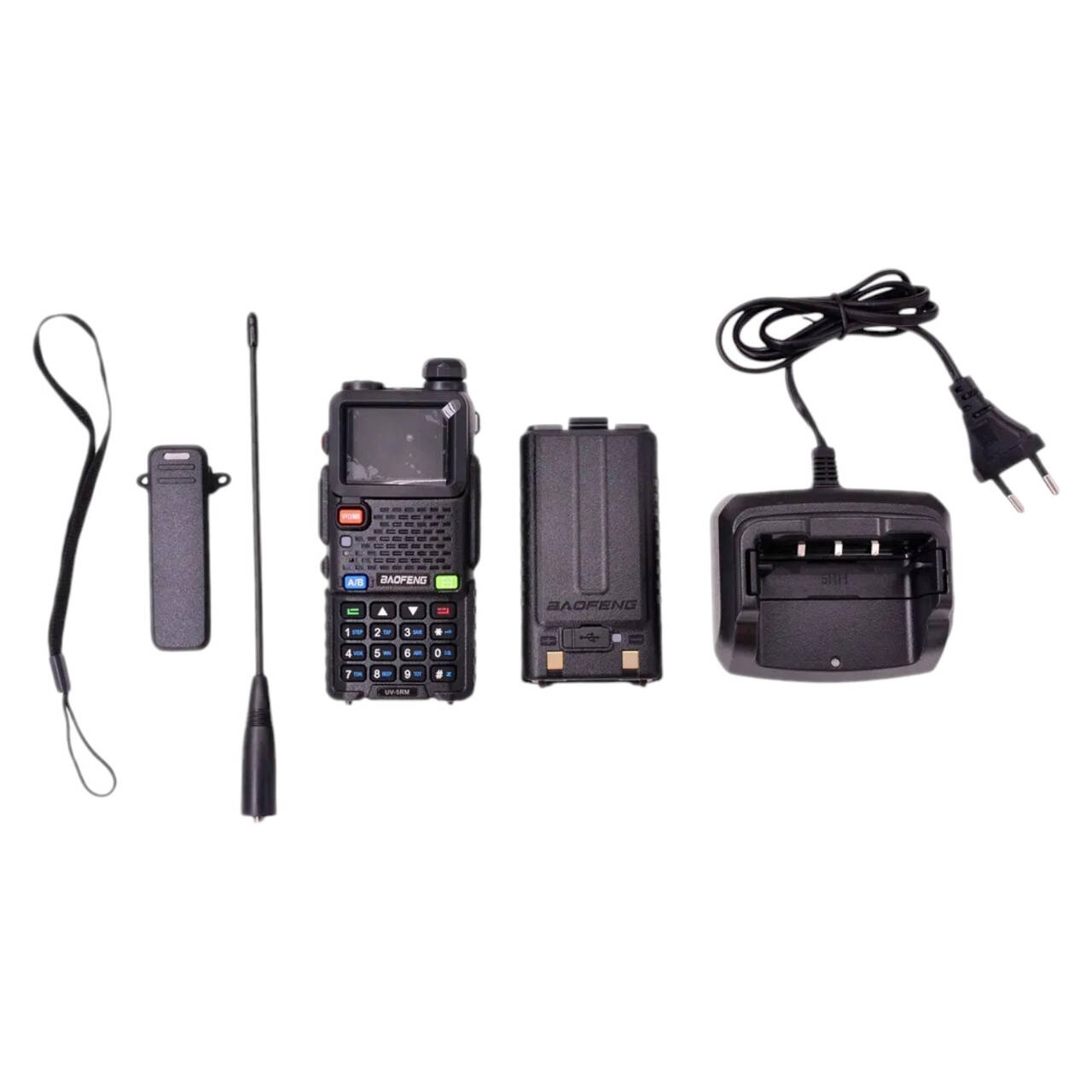

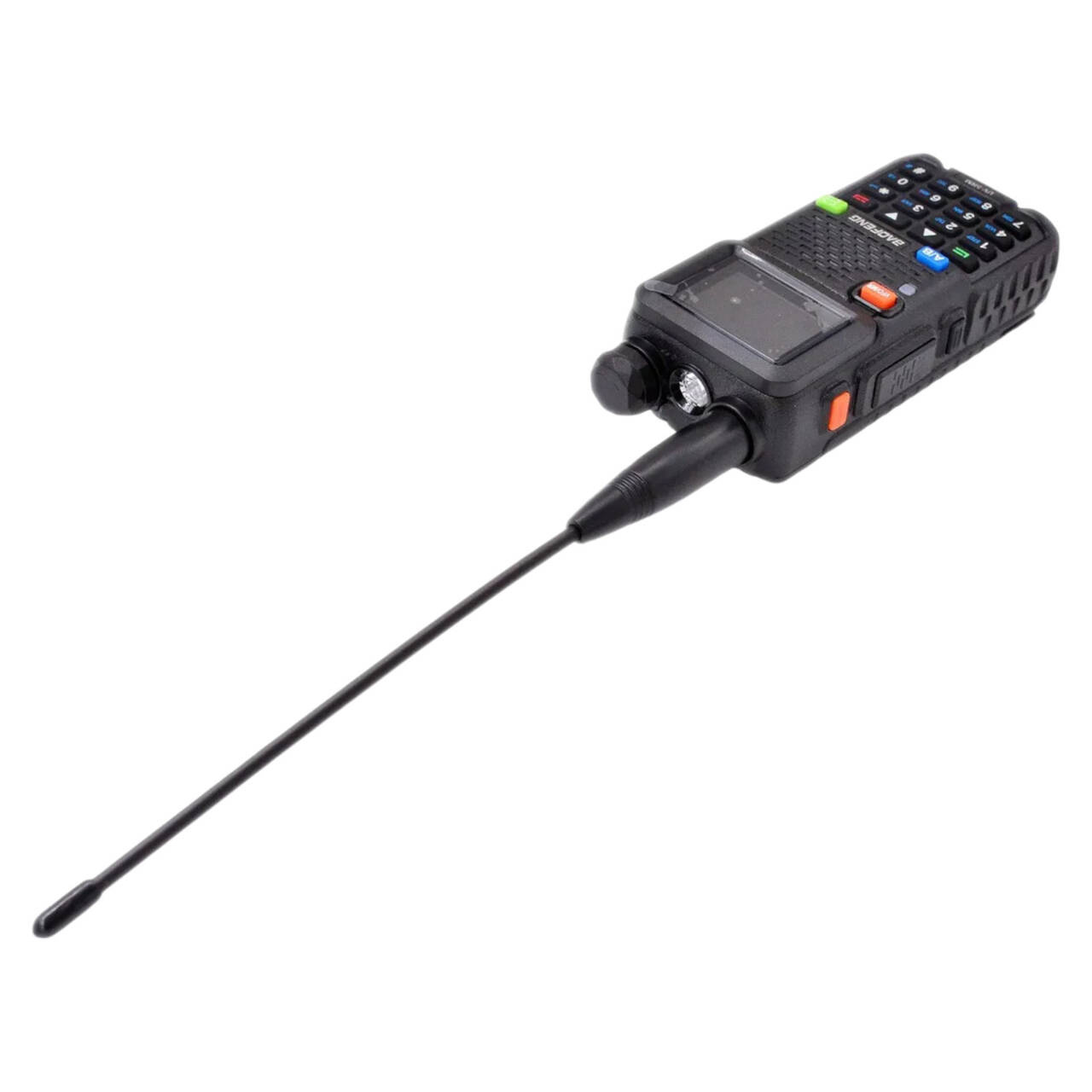

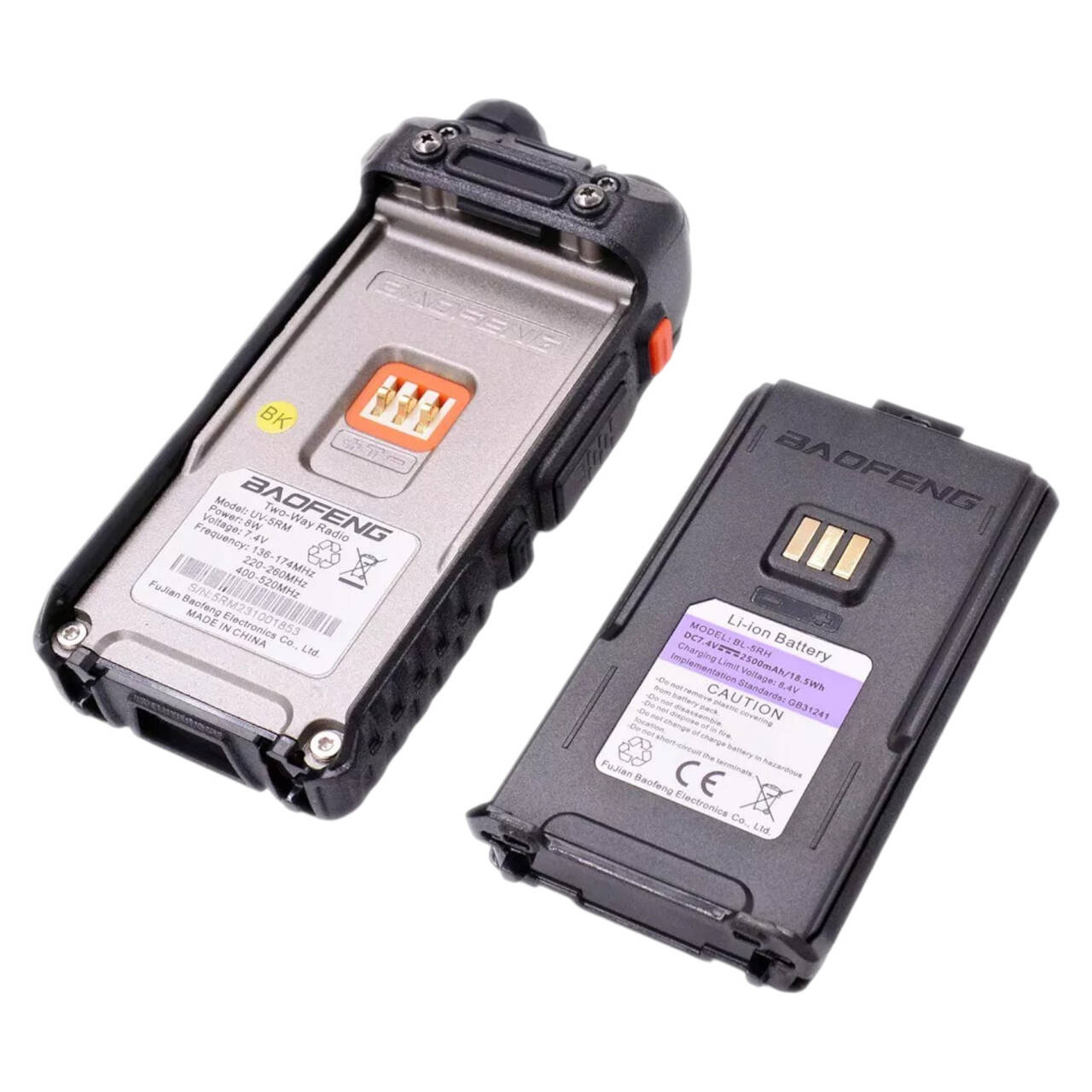

The antenna is 20 cm long and detachable. The antenna connector is a classic SMA-male. The Li-Ion battery has a capacity of 2500 mAh / 7.4 V.

PROGRAMMING

The radios can be programmed using a Baofeng USB cable (not included) and a simple program available for download on the dealer's website or in the "Documents" tab, or you can use Chirp-next.
SPECIFICATIONS

Frequency Range:

One-touch search and copy, easy pairing and grouping (parameter copying)

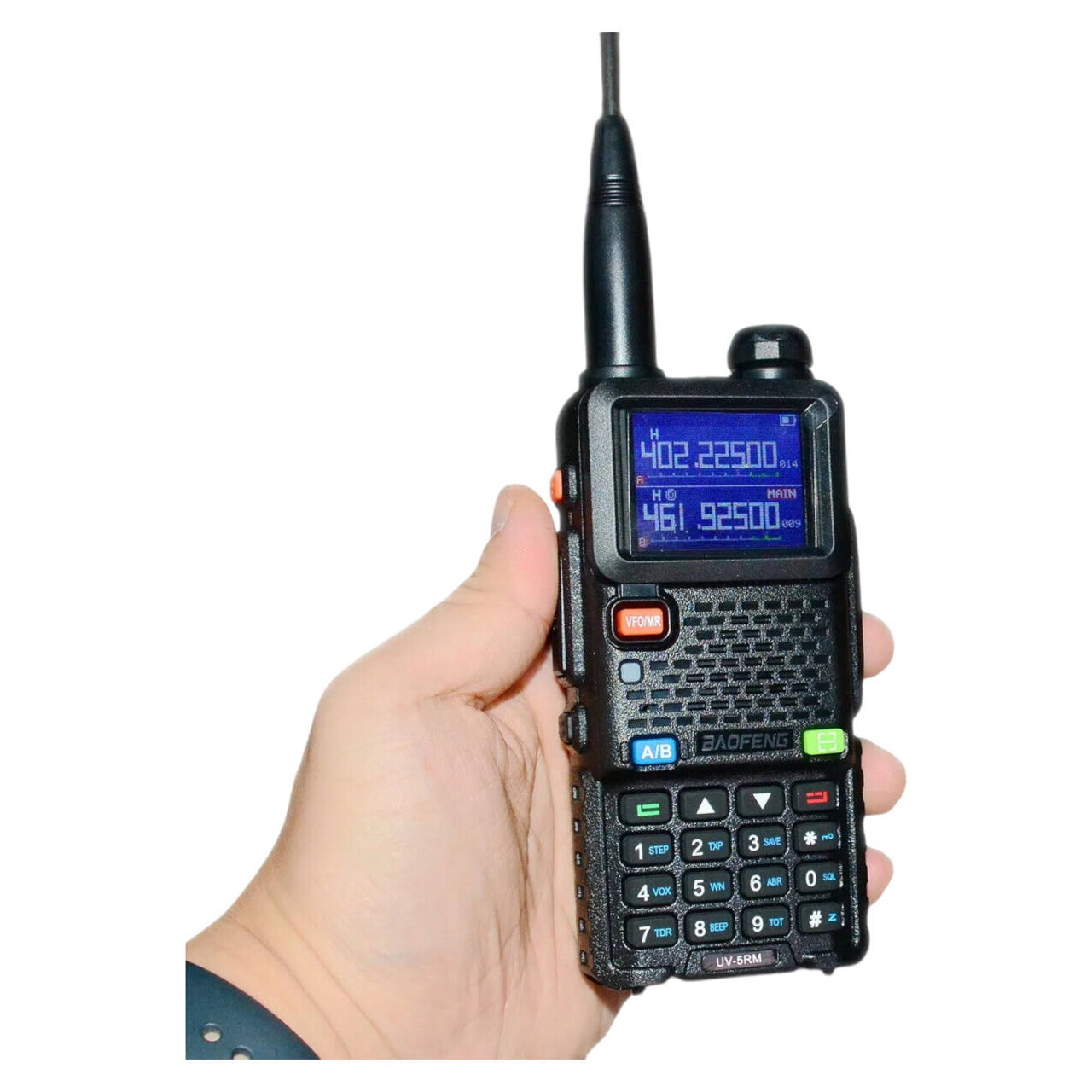

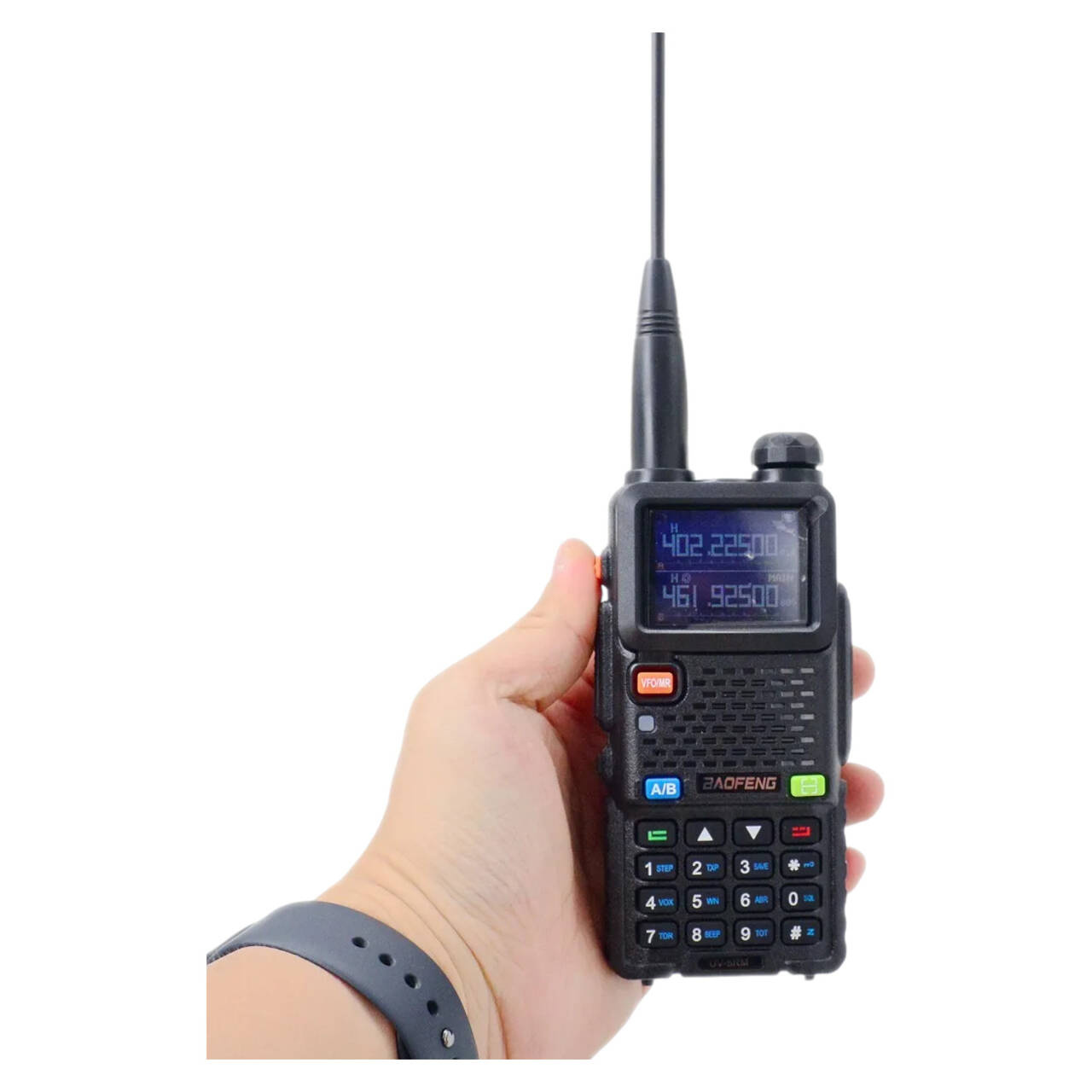

Large 1.77" TFT screen, full keyboard
Display backlight programmable via keypad
LED flashlight
Dual clock / dual reception
DTMF and manual DTMF dialing
VOX (voice-activated transmission)
Programmable skip for converters
10 levels of squelch settings
US and Canada NOAA weather reception support
65-108 MHz WFM RX
108-136 MHz (pouze AM RX)
136-174 MHz (TX/RX)
200-220 MHz (RX)
220-260 MHz (TX/RX)
350-390 MHz (RX)
400-480 MHz (TX/RX)
480-520 MHz (RX)
Tuning steps: 2.5/5/5/6.25/10/12.5/25.5/25/50 KHz
50 CTCSS/104 DCS
Wide/narrow channel width (25 kHz / 12.5 kHz)
Power selectable in 3 steps: High 8W, Middle 4W, Low 1W
* Maximum power of 8W VHF and 7W UHF is only in the amateur bands 144 - 146 / 430 - 440 MHz, not outside these bands (e.g. on shared frequencies)
999 memory channels
PTT & ANI FM Radio ID and memory for 25 stations
SMA male antenna connector
FM radio sensitive (65.0 MHz - 108.0 MHz)

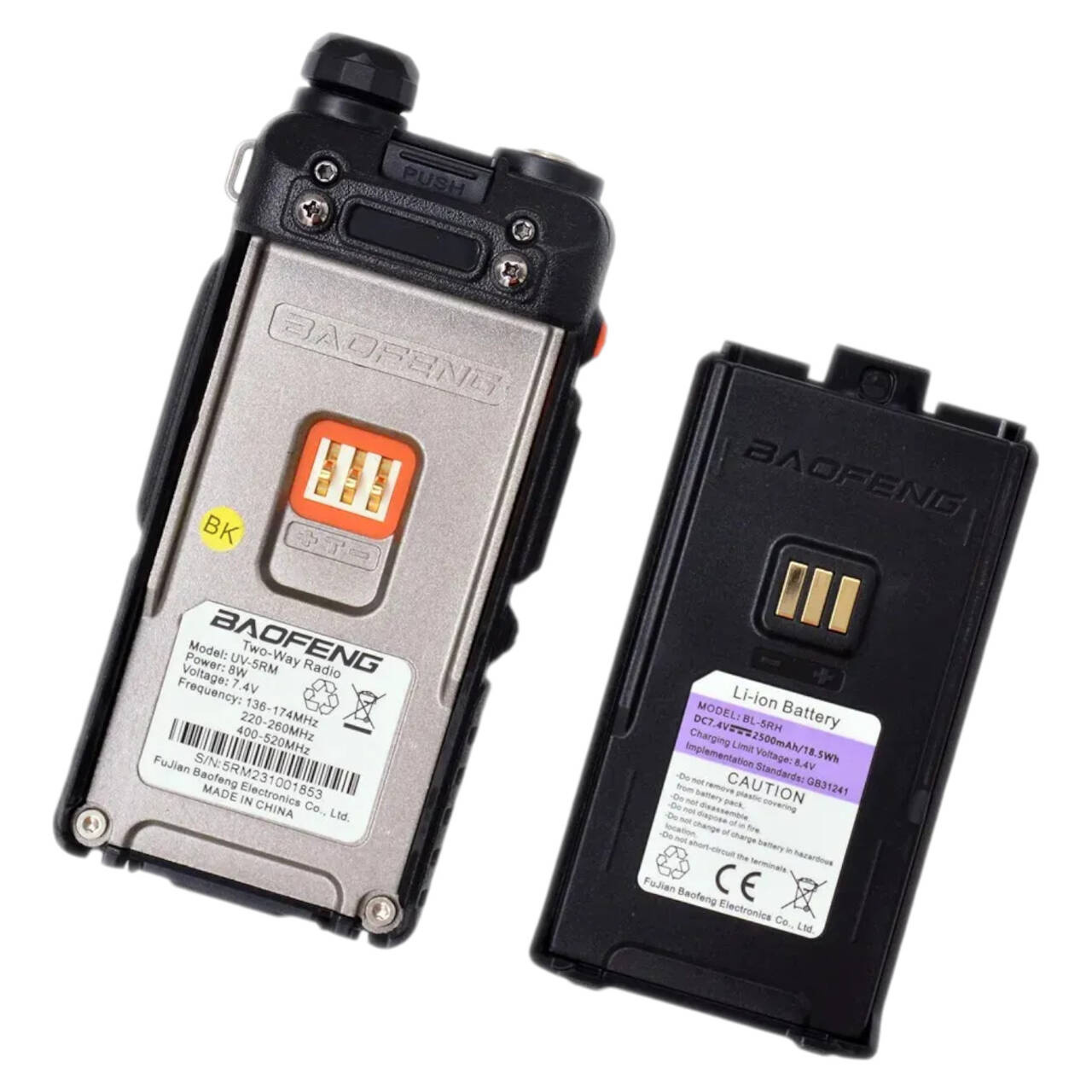

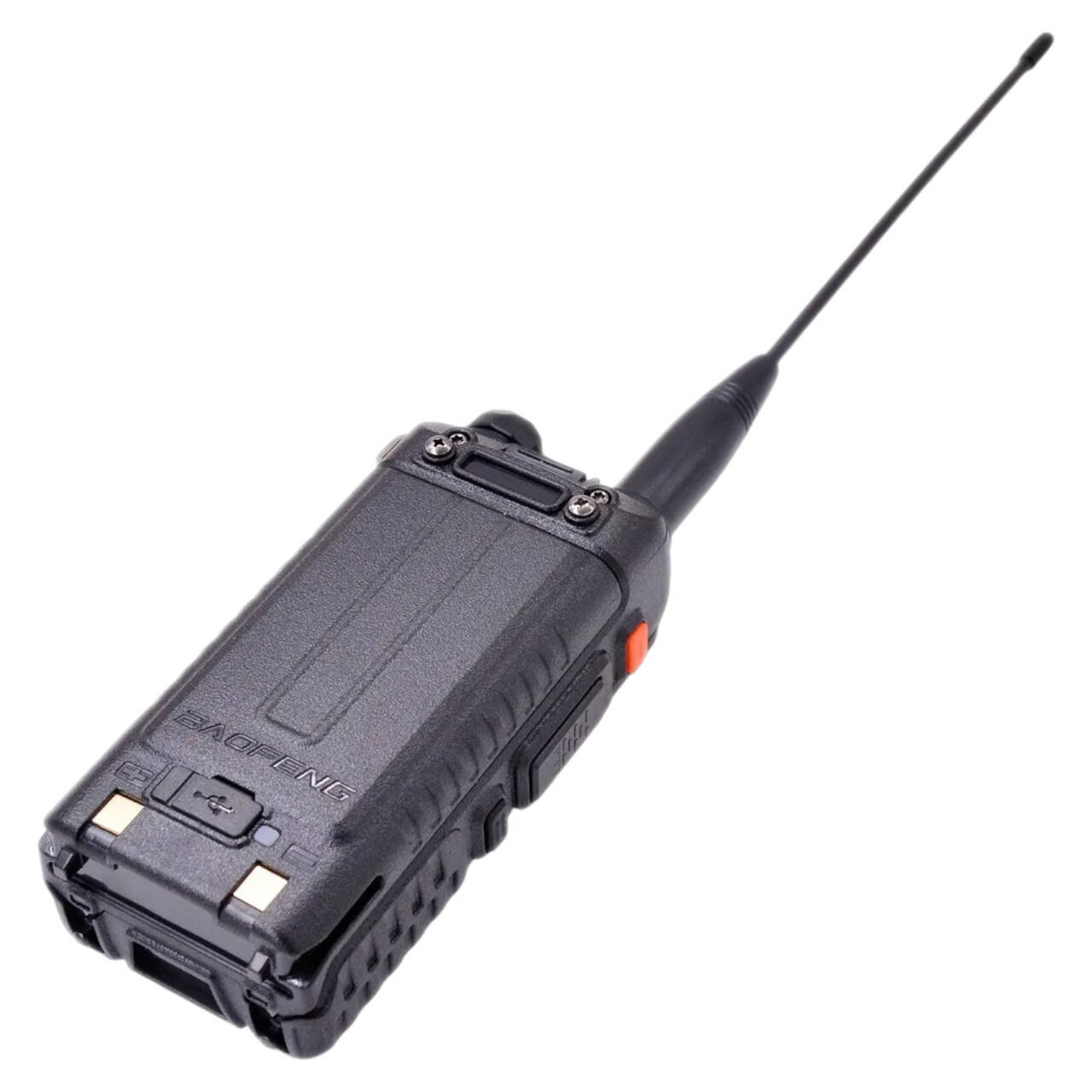

Battery: 7.4V 2500 mAh with USB-C connector
Stability: ±2.5 ppm
Operating temperature: -20°C ~ +50°C
Dimensions: 130 x 55 x 30 mm
Weight: 255 g
